Rotary Filling Machine

Rotary Filling Machine

Industrial Use

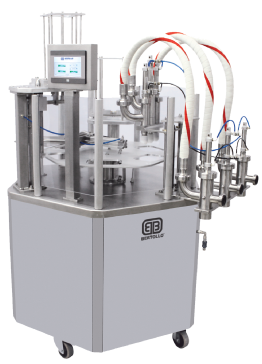

Bertollo's Rotary Fillers have a base with swivel castors with brake, and their structure and coatings are built in 304 stainless steel.

The process is fully automated, operations are triggered by a programmable logic controller, the product is taken directly from the outlet of a continuous ice cream producer and filled without any contact with the operator, the only intervention required is to supply the packaging dispenser empty and the removal of the final product, providing safety to employees and a high sanitary standard.

Mechanism with a set of pneumatic actuators make the precise dosage of ice cream, 1, 2 or 3 different flavors. The ice cream and its respective connections circulate through a pipe made of 304 stainless steel, and also through sanitary standard hoses.

In the equipment, it is possible to adapt or attach a Filling Dosing Pump (optional) for the manufacture of sundae.

Pneumatic actuators remove from the process and position, one by one, the final product manually, or optionally on an electric belt. Flow from 300 to 600 packages per hour, in 2-liter pots, and from 750 to 1500 packages per hour for packages from 200 ml to 500 ml.
